TRIVAC D 16 B
| Pumping speed (50 Hz): | 16.5 m³/h |
| Pumping speed (60 Hz): | 19.8 m³/h |
| Ultimate pressure: | 2 x 10⁻³ mbar |
Please login to request a quote.

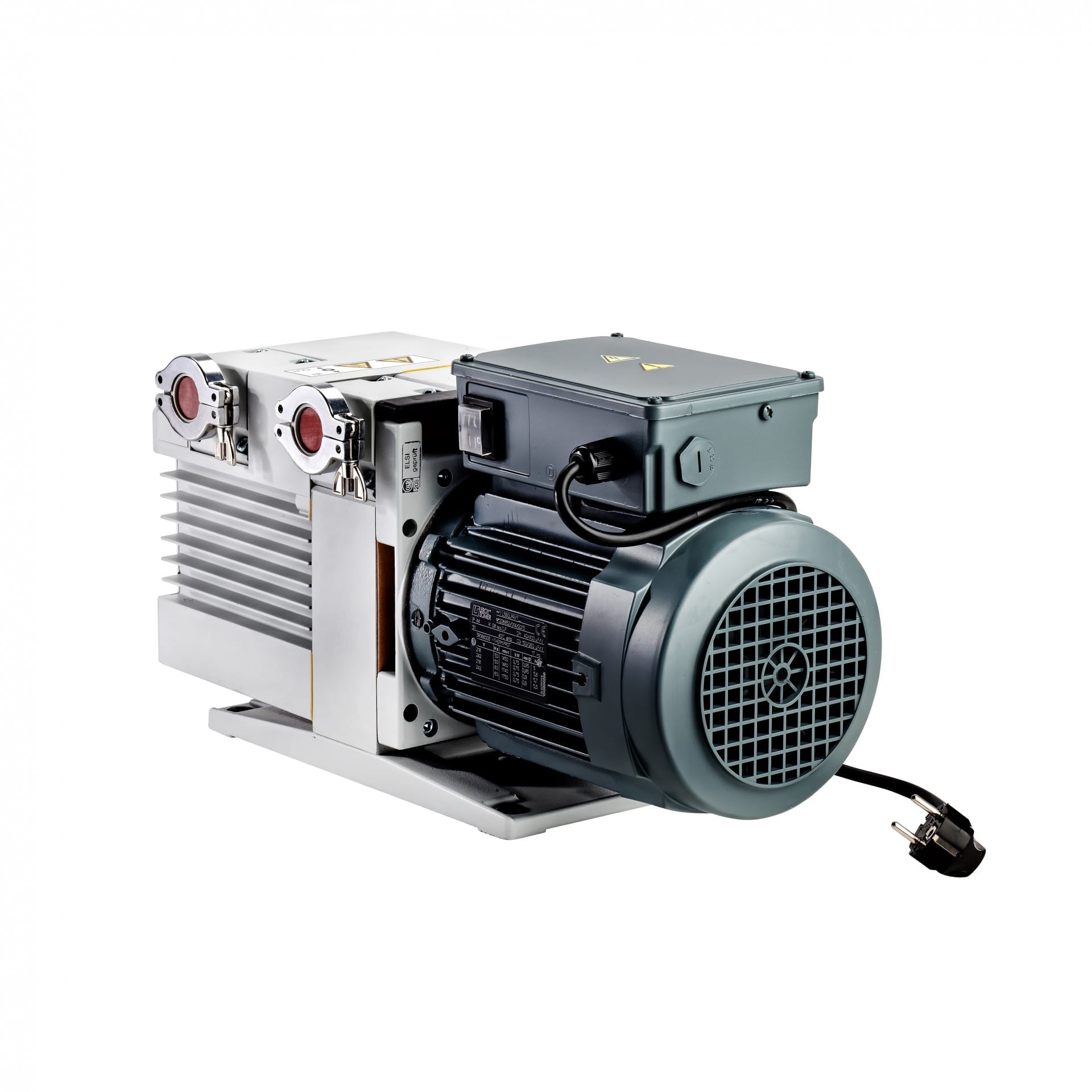

TRIVAC D 16 B
Two-stage rotary vane vacuum pumps
The TRIVAC B are oil-sealed vacuum pumps based on the rotary vane principle. The oil injected into the pump chamber is used for sealing, lubrication and cooling. The pump body is composed of individual parts without sealing elements. These are pinned to ensure easy disassembly and assembly.
environmentally friendly
■ Quiet
■ Vibration-free running Energy-saving
energy saving
■ Low power consumption
■ Low heat emission
Modern vacuum technology
■ High pumping speed up to the final pressure
■ Low final pressure, even with gas ballast
■ High water vapor tolerance
■ Continuous operation even at 1000 mbar
■ Integrated oil pump, positively lubricated slide bearings
■ Minimal air intake
■ High leak tightness (4He capable)
